Tension Loadcell
PBTK100

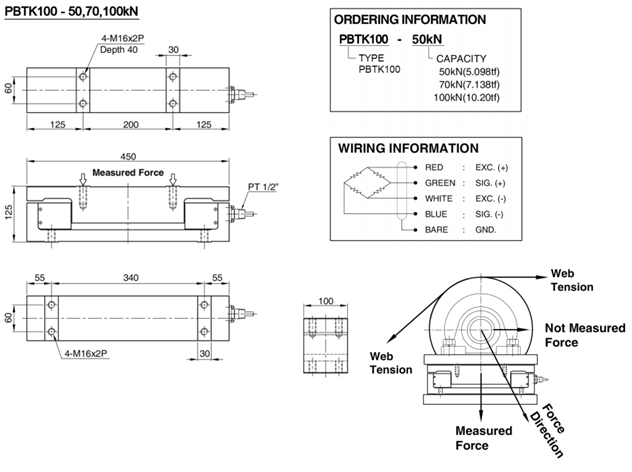

Series PBTK100
Pillow Block Type Load Cell (Vertical force 50kN~100kN)
The PBTK100 series,used in metal processing lines and other hostile industrial applications, accurately and reliably measure strip tension, and are designed to mount directly under the roll bearing pillow blocks.
-Overload capability of 450% of rated capacity without zero shift.
Excellent linearity form zero through the entire measuring range.
-Electroless nickel plated for corrosion resistance and fully sealded to IP67
- Full temperature compensation.
SPECIFICATIONS
TYPE | PBTK100 |
Rated capacity (R.C.) | 50，70，100kN |
Rated output(R.O.) | 1.0mV/V ± 0.25% |
Non-linearity | ≤0.2% R.O. |
Hysteresis | ≤0.2% R.O. |
Non-repeatability | ≤0.1% R.O. |
Creep error | ≤0.1% in 20min |
Zero balance | ≤1% R.O. |
Compensated temperature range | -10 ~ 70℃ |
Operating temperature range | -20 ~ 80℃ |
Temp. effect on rated output | ≤0.03% LOAD/10℃ |
Temp.effect on zero balance | ≤0.03% R.O./10℃ |
Terminal input resistance | 700 Ohms ± 3.5 Ohms |
Terminal output resistance | 700 Ohms ± 5 Ohms |
Insulation resistance (Min.) | 2000 MOhms at 50V DC |
Excitation voltage | 10V（Recommended）,15V（Max.） |
Electrical connection | Ø9mmx6m（22AWGx4Core Shielded） |
Protection class | meets IP 67 |
Safe overload | 450% R.C |
Ultimate overload | 800% R.C |
* Specifications are subject to change without notice
