Pressure Sensor

QUF

Built-in amplifier Circuit（VDC ,mA）
Measuring range 0~10MPa
0.5%FS accuracy
PDF：QUF
INQUIRY

Series QUF

General Purpose Pressure Transducer

QUF model is the low price,the compact size pressure transmitter.It can be applied to precise measurement and builds an inner amplifier to interface with various kinds of controllers.

Feature

-CE Certified

-Built-in amplifier Circuit（VDC ,mA）

-Measuring range 0~10MPa

-0.5%FS accuracy

-Piezoresistive silicon cell

-Stainless steel,VITON media - wetted materials

Application

-Off road equipment

-Hydraulics & Pneumatic

-Compressor control

-Industrial engines

-Pump pressure control

SPECIFICATIONS

Range
	0~100kPa......10MPa（Gauge，Absolute）
Performance
Accuracy	±0.5%FS（RSS）
Thermal Effect on Zero	±0.05%FS/℃
Thermal Effect on Span	±0.05%FS/℃
Compensated Temperature Range	-10~70℃
Operating Temperature Range	-20~80℃
Electrical
Excitation	11~28VDC

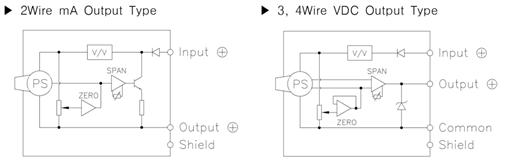

Output	0~5VDC，1~5VDC，0~10VDC，4~20mA（2Wire）

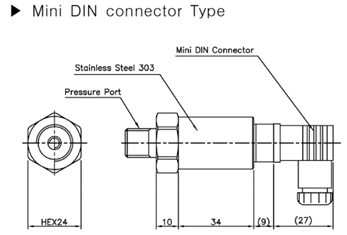

Electrical Connection	Mini DIN Connector
Physical
Proof Pressure	150%FS Max.
Burst Pressure	200%FS Min.
Vibration	49.1m/s²{5G}，10~500Hz
Shock	490m/s²{50G}
Pressure Port	R(PT)1/4", G(PF)1/4",(Other Connection Available on Request)
Media - Wetted Materials	Stainless Steel 303, 316L,VITON(G1/4 Seal：NBR)
Weight	Approx.100g
