Indicator
Model HPHPDI Series
96x96mm Size
High Precision, High Speed Digital Indicator
For:
-High speed weighing applications
-Force,pressure&torque measurements
Features:
-24 Bit Sigma-Delta A/D converter for high accuracy
-High-speed A/D and D/A conversion at 2000times/sec
-Simulative(mV/V memory) or live load calibration
-Digital linearization function
-Low/High limit display
-Low/OK/High Relay contact output
-Hold or peak hold function
-Serial command to set limit values(max.32ID)
-Sensor output check function
-Isolated analog output(Option 1,2)
-Power source AC85~240V(Free voltage)
SPECIFICATIONS
Analog signal input range | -34mV~+34mV | |
Non-linearity | 0.01% F.S.max. | |
Max.display resolusion | 1/20,000 | |
Min.input sensitivity | 0.2μV/Digit(min.) | |
Temperature drift | Zero:±0.1μV/℃ RTI max. SPAN:10ppm/℃ max. | |
Load cell excitation | DC 5V,60mA(350 ohm x 4 load cells) | |
Input noise | ±0.3μVpp or less | |
Input impedance | 10MΩ or more | |
A/D internal resolusion | 24 bits | |
A/D sampling speed | 2,000 times/sec | |
Display | Measurement | LED,7 segments 14.1mm high 6 digit |
High/Low | LED,7 segments 8.0mm high 5 digit | |
Maximum display | (-)19999~(+)19999(min.division:1) (-)199950~(+)999950(min.division:50) | |
Display speed | 1,000times/sec~1 times/sec | |
Polarity indication(-) | “-”Minus sign | |
Annunciators | LO,OK,HI,HOLD,ZERO | |
Display increments | 1,2,5,10,20,50selectable | |
Decimal points | Selectable to any points | |
Power source | AC 85~240V,50/60Hz(Free voltage) | |
Power consumption | Approx.20VA | |
Operating temperature | -10℃~50℃ | |

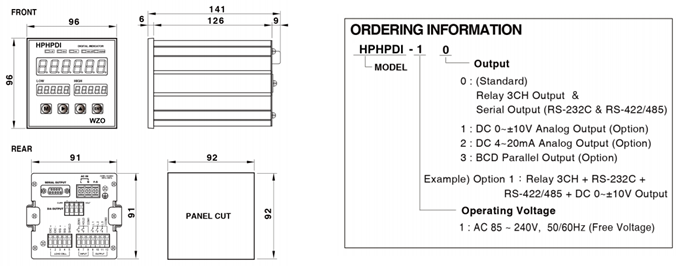

Output | Standard | 0）Relay 3CH Output & Serial Output (RS-232C & RS-422/485) |
Options | 1) DC 0~±10V Isolated Analog Output (User-changeable to DC 0~±5V) 2) DC 4~20mA Isolated Analog Output (User-changeable to DC 0~20mA) 3)BCD Parallel Output | |
Weight | Approx.700g | |
* Specifications are subiect to change without notice
