Series HSGl
High Speed Graphic Indicator
Features
- Force & displacement controller
-4,000 times/sec sampling speed
-Graphic color LCD touch-screen display
-High precision signal conditioner
-Many varieties of wave display functions
SPECIFICATIONS
A-channel | B-channel | ||
Sensor excitation | DC 10/5V,120mA | N/A | |
Signal input range | 0 ~ ±40mV | 0 ~ ±10V,4~20mA,0~20mA | |
Non-linearity | ±0.02%F.S+1digit | ±0.02%F.S+1digit | |
Min. input sensitivity | 1.0μV/Digit | 1.0mV/Digit(0~10V) | |
Conversion rate | 4,000 times/sec | 2,000 times/sec | |
Input impedance | 10MΩ | 1MΩ/50Ω | |
Temperature drift | ±0.005% of rdg+0.5 digit/℃ | ||
Analog filter | 10,30,300,600 Hz | ||
Display type | STN color LCD,74(W)x55(H)mm | ||
Active digit | 0~±99999 | ||
Operating temperature | 0~40℃ | ||
Power | AC 100~240V,50/60Hz | ||
Current consumption | About 32VA | ||
Output | Standard | Open collector output(HH, HI, GO,LO, LL) | |
Option | 1) RS232C serial output 2) RS485 serial output 3)±0~10V or 4~20mA analog output 4) BCD parallel output 5) SD memory card | ||
Weight | About 1.0kg |

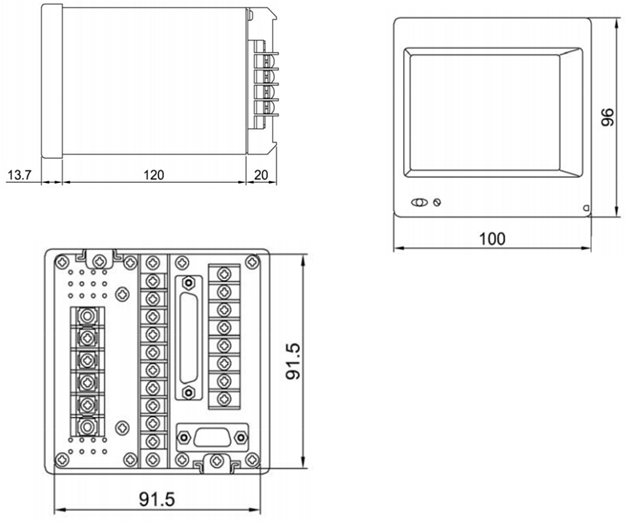

* Specifications are subiect to change without notice
WZO CONTROLS LTD
