Single Point Loadcell
The SPBBCK800 series single point load cell is designed for low profile scales and automatic check weighing systems where great accuracy, reliability and fast measurement are required.
SPECIFICATIONS
TYPE | SPBBCK800 | ||
Rated capacity (R.C.) | 1, 3kg | 6,10,25,30,50,52,100,150,250kg | |
Rated output(R.O.) | 1.0mV/V ±10% | 2.0mV/V±10% | |
Non-linearity | ≤0.02% R.O. | ||
Hysteresis | ≤0.02% R.O. | ||
Non-repeatability | ≤0.02% R.O. | ||
Creep error | ≤0.03% in 20min | ||
Zero balance | ≤5% R.O. | ||
Compensated temperature range | -10 ~ 70℃ | ||
Operating temperature range | -20 ~ 80℃ | ||
Temp. effect on rated output | ≤0.012% LOAD/10℃ | ||
Temp.effect on zero balance | ≤0.03% R.O./10℃ | ||
Terminal input resistance | 420 Ohms ± 20 Ohms | ||
Terminal output resistance | 350 Ohms ± 50 Ohms | ||
Insulation resistance (Min.) | 2000 MOhms at 50V DC | ||
Excitation voltage | 10V（Recommended）,15V（Maximun） | ||

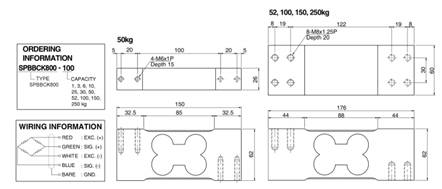

Electrical connection | 1-30kg | Ø4mmx1.5m(22AWG x 4Core Shielded) | |
50-250kg | Ø4mmx1.5m(22AWG x 4Core Shielded) | ||
Protection class | meets IP 65 | ||
Safe overload | 150% R.C | ||
Ultimate overload | 300% R.C | ||
Capacity(kg) | Allowable Maximum Platform Size |
1,3kg (9.807, 29.42N) | 200X200mm |
6~30kg (58.84~294.2N) | 300X300mm |
50kg (490.3N) | 400X500mm |
52~250kg (510.0~2452N) | 400X600mm |
* Specifications are subject to change without notice
