Single Point Loadcell
·SPC1 load cells are available in the capacities 0.3kg-3kg.
· Aluminum construction with parallel beam.
·Silicon adhesive sealed,surface anodized and anti-corrosion.
·Integral structure and easy installation.
·Suitable for electronic balance and other electronic weighing devices.
Features
· Capacity:0.3kg～3kg
· High accuracy
· Max.platform size:200×200mm
SPECIFICATIONS
Capacity | kg | 0.3/0.6/1.2/3 |
Accuracy | C3D | |
Maximum number of verification intervals | nmax | 2500 |
Minimum load cell verification interval | vmin | Emax/5000 |
Combined error | (%FS) | ≤±0.030 |
Creep | (%FS/30min) | ≤±0.020 |
Temperature effect on sensitivity | (%FS/10℃) | ≤±0.021 |
Temperature effect on zero | (%FS/10℃) | ≤±0.028 |
Output sensitivity | (mV/V) | 0.9±0.2 |
Input resistance | (Ω) | 406±6 |
Output resistance | (Ω) | 350±3 |
Insulation resistance | (MΩ) | ≥5000 |
Zero balance | (%FS) | 2 |
Temperature, compensated | (℃) | -10~+40 |
Temperature,operating | (℃) | -35~+70 |
Excitation, recommended | (V) | 5~12(DC） |
Excitation, max | (V) | 18（DC） |
Safe overload | (%FS) | 150 |
UItimate overload | (%FS) | 300 |
Corner correction | 0.02% load value/100mm |

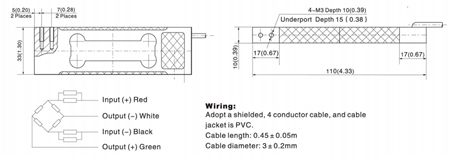

Outline Dimension mm(inch)
* Specifications are subject to change without notice
