Single Point Loadcell
·SPC2 load cells are available in the capacities 3kg-50kg.
· Aluminum construction with parallel beam.
·Silicon adhesive sealed,surface anodized and anti-corrosion.
·Integral structure and easy installation.
·Suitable for electronic balance and other electronic weighing devices.
Features
· Capacity:3kg～50kg
· High accuracy
·Max.platform size:450×450mm
·Installed screw request M8, 8.8 class,with oiled screw, torque 25Nm.
SPECIFICATIONS
Capacity | kg | 3/5/8/20/30/50 | ||
ACCuracy | C3D | C3 | C3G | |
Maximum number of verification intervals | nmax | 2500 | 3000 | 4000 |
Minimum load cell verification interval | vmin | Emax/5000 | Emax/7000 | Emax/11000 |
Combined error | (%FS) | ≤±0.030 | ≤±0.020 | ≤±0.015 |
Creep | (%FS/30min) | ≤±0.020 | ≤±0.0167 | ≤±0.0125 |
Temperature effect on sensitivity | (%FS/10℃) | ≤±0.021 | ≤±0.0175 | ≤±0.0131 |
Temperature effect on zero | (%FS/10℃) | ≤±0.028 | ≤±0.020 | ≤±0.0127 |
Output sensitivity | (mV/V) | 1.9±0.2 | ||
Input resistance | (Ω) | 409±6 | ||
Output resistance | (Ω) | 350±3 | ||
Insulation resistance | (MΩ) | ≥5000（50VDC） | ||
Zero balance | (%FS) | 2 | ||
Temperature, compensated | (℃) | -10~+40 | ||
Temperature,operating | (℃) | -35~+70 | ||
Excitation, recommended | (V) | 5~12（DC） | ||
Excitation, max | (V) | 18（DC） | ||
Safe overload | (%FS) | 150 | ||
UItimate overload | (%FS) | 300 | ||
Corner correction | 0.02% load value/100mm | |||

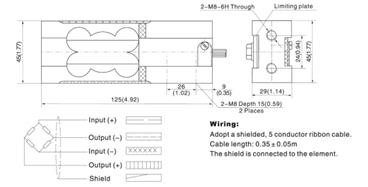

Outline Dimension mm(inch)
* Specifications are subject to change without notice
