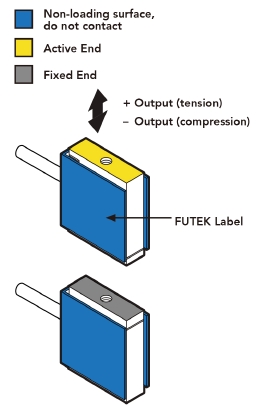

Shear Beam Loadcell
Up to 10 times the overload protection
Overload is available in Tension and Compression
Light weight
Notable nonlinearity
Miniature size
Ultra Low Capacity and High Sensitivity
Vibration and shock resistance
High flex silicone cable
SPECIFICATIONS | |
PERFORMANCE | |
Nonlinearity | ±0.1% of RO |
Hysteresis | ±0.1% of RO |
Nonrepeatability | ±0.05% of RO |
ELECTRICAL | |

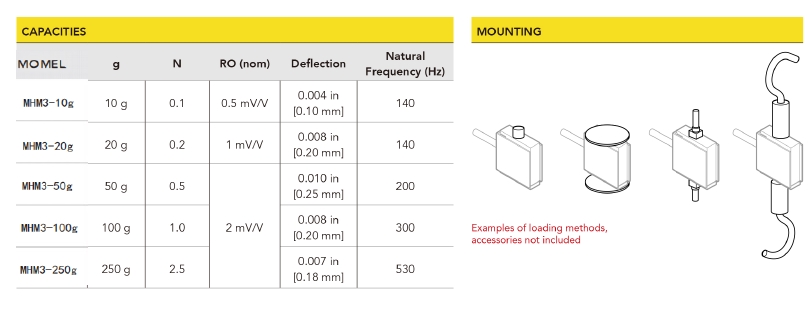

Rated Output (RO) | See chart on third page |
Excitation (VDC or VAC) | 10 max |
Bridge Resistance | 1000 Ohm nom. |
Insulation Resistance | ≥500 MOhm @ 50 VDC |
Connection
| #29 AWG, 4 conductor, spiral shielded siliconecable,5 ft[1.5 m] long |

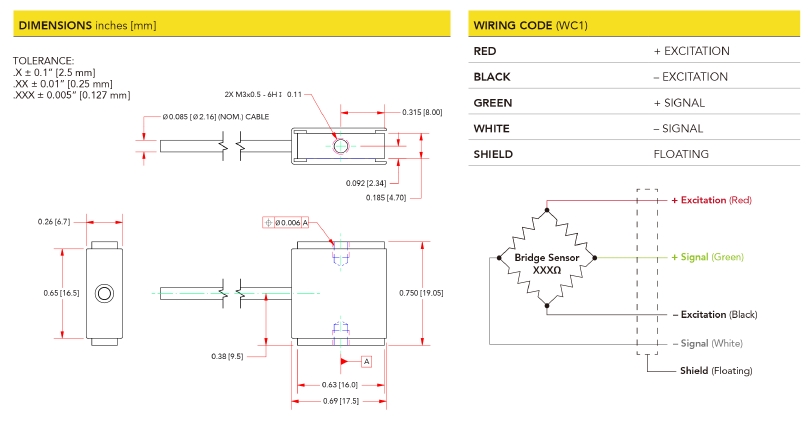

Wiring Code | WC1 |
MECHANICAL | |
Weight (approximate) | 0.7 oz[19.3 g] (10-250 g) |
Safe Overload | 1000% -f RO |
Material | Aluminum (10-250 g) |
IP Rating | IP40 |
Vibration Resistance | 20-2000 Hz,0.01g²/Hz per MIL-STD-810E |
Shock Resistance | 500 g per IEC60068-2-27 |
TEMPERATURE | |
Operating Temperature | -60 to 200°F [-50 to 93°C] |
Compensated Temperature | 60 to 160°F [15 to 72℃] |
Temperature Shift Zero | ±0.01% of RO/°F [0.018% of RO/°C] |
Temperature Shift Span | ±0.02% of Load/°F [0.036% of Load/°C] |
CALIBRATION | |
Calibration Test Excitation | 5 VDC |
Calibration (standard) | 5-pt Tension |
Calibration (available) | 5-pt Tension and Compression |
Shunt Calibration Value
| 301 kOhm (10-20 g) 150 kOhm (50-250 g) |
CONFORMITY | |
RoHS | EU 2015/863 |
CE | EN55011;EN61326-1 |
