FSBT5

Rated   capacity (R.C.)

500kg, 1, 2t

3, 5t

Rated   output(R.O.)

2.0   ± 0.005mV/V

Non-linearity

≤0.03% R.O.

Hysteresis

≤0.03% R.O.

Non-repeatability

≤0.02% R.O.

Creep   error

≤0.03% in 20min

Zero   balance

≤1% R.O.

Compensated   temperature range

-10   ~ 70℃

Operating   temperature range

-20   ~ 80℃

Temp.   effect on rated output

≤0.02% LOAD/10℃

Temp.effect   on zero balance

≤0.02% R.O./10℃

Terminal   input resistance

400   Ohms ± 20 Ohms

Terminal   output resistance

350   Ohms ± 5 Ohms

Insulation   resistance (Min.)

2000   MOhms at 50V DC

Excitation   voltage

10V（Recommended）,15V（Max.）

Electrical   connection

Ø5mmx3m

Ø5mmx6m

Protection   class

IP 67

Safe   overload

150%   R.C

Ultimate   overload

300%   R.C

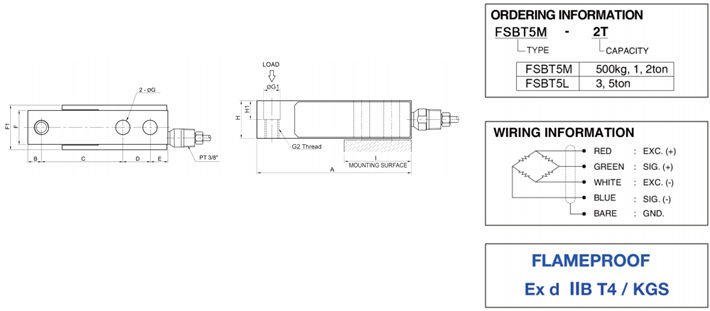

500kg~2t   (4.903-19.61kN)

131

12.7

76.2

25.4

16.7

32

42

13.5

13.5

M12x1.75P

32

16

56

1.2

3, 5t

(29.4，49.03kN)

171.5

19

95.3

38.1

19.1

38.1

50

20.5

20.5

M20x2.5P

38

19

76.2

2.2
