Shear Beam Loadcell
Series SDCT15
Compression Load Cell Specially Designed For Truck Scales (5t~15t)
Specially designed for midium size truck scales in harsh environments.
The effective integration of the SDCT15 is that mount and double ended shear beam load cell eliminates the need for troublesome check roads, links, expansion assemblies and other peripheral hardware.
The unique spherical ball point loading mechanism makes lateral movement of the assembly possible,while controlled floating of the scale deck is allowed.
-High overload tolerance
-Self centering design
- Electroless nickel plated alloy tool steel
-0.03% accuracy
-Protection against harsh environment

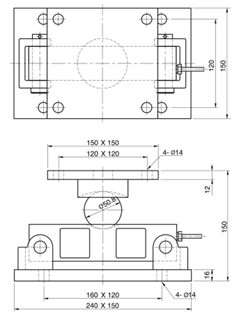

SPECIFICATIONS
TYPE | SDCT15 |
Rated capacity (R.C.) | 5，10，15t |
Rated output(R.O.) | 2.0mV/V ± 0.25% |
Non-linearity | ≤0.03% R.O. |
Hysteresis | ≤0.03% R.O. |
Non-repeatability | ≤0.03% R.O. |
Creep error | ≤0.03% in 20min |
Zero balance | ≤1% R.O. |
Compensated temperature range | -10 ~ 70℃ |
Operating temperature range | -20 ~ 80℃ |
Temp. effect on rated output | ≤0.02% LOAD/10℃ |
Temp.effect on zero balance | ≤0.03% R.O./10℃ |
Terminal input resistance | 800 Ohms ± 30 Ohms |
Terminal output resistance | 700 Ohms ± 5 Ohms |
Insulation resistance (Min.) | 2000 MOhms at 50V DC |
Excitation voltage | 10V（Recommended）,15V（Max.） |

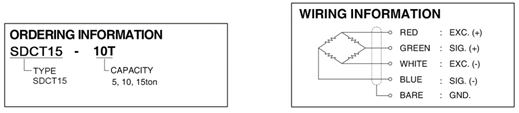

Electrical connection | Ø7mmx6m(22AWG x 4Core Shielded) |
Protection class | meets IP 67 |
Safe overload | 150% R.C |
Ultimate overload | 300% R.C |
Weight:12.5kg
* Specifications are subject to change without notice
