Shear Beam Loadcell
TSLC
Series TSLC
Truck Scale Load Cell(20,25,30t)
Material
-Paint finished steel
Cable
-Braided Shield 4-wire round cable with PVC-jacke
Features
-Robust design and easy installation
-Strong against shock or side force
-Standard ball included
SPECIFICATIONS
Rated capacity (R.C.) | t | 20，25,30t |
Rated output(R.O.) | mV/V | 2.0±0.004 |
Zero balance | mV/V | 0.0±0.03 |
Accuracy class | ||
Combine error | % | 0.03 |
Repeatability | % | 0.02 |
Cerrp for 30 min | % | 0.03 |
Temperature Effect on zero Value | %/℃ | 0.03 |
Temperature Effect on output Value | %/℃ | 0.015 |
Excitation Recommended | V | 10 |
Excitation Maximum | V | 15 |
Resistance input | Ω | 820±40 |
Resistance output | Ω | 700±7 |
Resistance Insulation | MΩ | >2000@50V DC |
Compensated temperature range | ℃ | -10 to +40 |
Operating temperature range | ℃ | -20 to +80 |

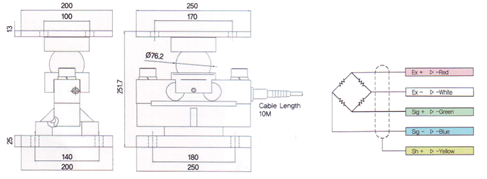

DIMENSIONS
* Specifications are subject to change without notice
