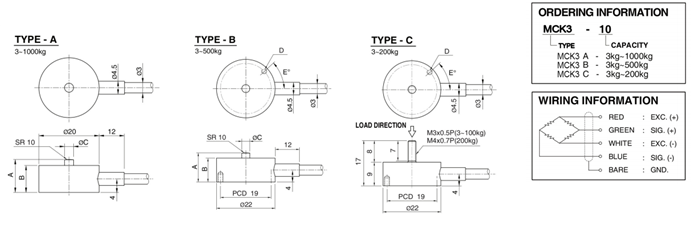

MCK3

Rated   capacity (R.C.)

3, 5kg

10,30,50,100,200,300,500,1000kg

Rated   output(R.O.)

1.0mV(App.)

1.0mV±1%

Material

Aluminium

Stainless   steel

Non-linearity

≤1%   R.O.

Hysteresis

≤1%   R.O.

Non-repeatability

≤1%   R.O.

Creep   error

≤0.5%   in 20min

Zero   balance

≤1%   R.O.

Compensated   temperature range

-10   ~ 70℃

Operating   temperature range

-20   ~ 80℃

Temp.   effect on rated output

≤0.5%   LOAD/10℃

Temp.effect   on zero balance

≤0.2%   R.O./10℃

Terminal   input resistance

350   Ohms ± 10 Ohms

Terminal   output resistance

350   Ohms ± 5 Ohms

Insulation   resistance (Min.)

2000   MOhms at 50V DC

Excitation   voltage

5V(Recommended),10V(Maximum)

Electrical   connection

3mmx1.5m(28AWGx4C Shielded)

Protection   class

meets IP 65

Safe   overload

150%   R.C

Ultimate   overload

300%   R.C
