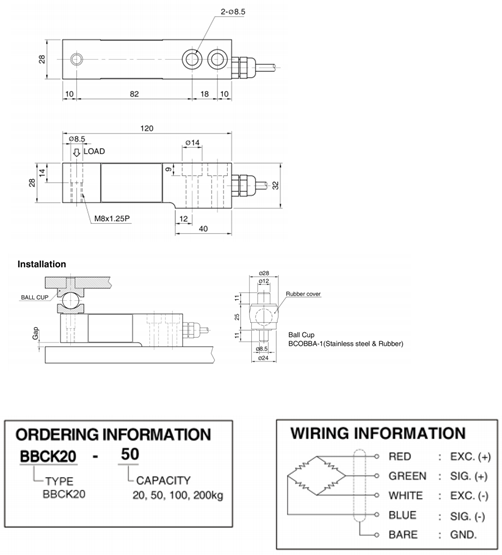

BBCK20

Rated   capacity (R.C.)

20，50，100，200kg

Rated   output(R.O.)

2mV/V±0.25%

Non-linearity

≤0.03% R.O.

Hysteresis

≤0.02% R.O.

Non-repeatability

≤0.02% R.O.

Creep   error

≤0.03% in 20min

Zero   balance

≤1% R.O.

Compensated   temperature range

-10   ~ 70℃

Operating   temperature range

-20   ~ 80℃

Temp.   effect on rated output

≤0.03% LOAD/10℃

Temp.effect   on zero balance

≤0.03% R.O./10℃

Terminal   input resistance

430   Ohms ± 20 Ohms

Terminal   output resistance

350   Ohms ± 5 Ohms

Insulation   resistance (Min.)

2000   MOhms at 50V DC

Excitation   voltage

10V（Recommended）,15V（Max.）

Electrical   connection

Ø5mmx3m(22AWG x 4Core Shielded)

Protection   class

meets IP   65

Safe   overload

150%   R.C

Ultimate   overload

300%   R.C
