Pressure Sensor

QDM

Built-in amplifier circuit(VDC, mA)
Measuring range 0~2MPa
0.5%FS accuracy
PDF：QDM
INQUIRY

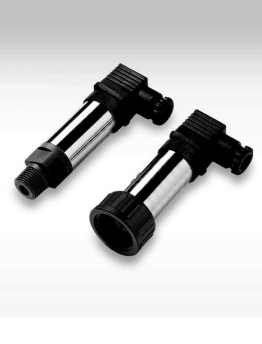

Series QDM

Ceramic Diaphragm Type

Corrosion Proof Pressure Transducer

QDM model is suitable for corrosion resistant environment since it uses ceramic pressure cell and Teflon body. Output of 1~5V or 4~20mA(2Wire) it may be interfaced with various controllers.

Feature

-Built-in amplifier circuit(VDC, mA)

-Measuring range 0~2MPa

-0.5%FS accuracy

-Piezoresistive ceramic cell

-PP or PVC, ceramic(Al₂O₃)media-wetted materials

Applications

-Semiconductor Manufacturing Equipment

-High-purity Fluids

-Chemical Process

-Physics and Chemistry Equipment

-Waste Disposing Equipment

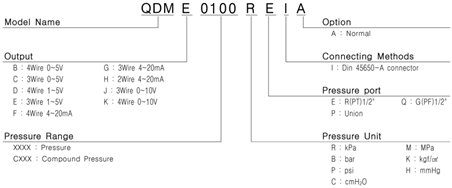

SPECIFICATIONS

Range
	0~100，200，500，700kPa/1，2MPa（Gauge） -100~0，100，200，500，700kPa/1，2MPa（Gauge）
Performance
Accuracy	±0.5% FS(RSS)
Thermal Effect on Zero	±0.06% FS/℃
Thermal Effect on Span	±0.06% FS/℃
Compensated Temperature Range	-10~70℃
Operating Temperature Range	-20~80℃
Electrical
Excitation	11~28V DC

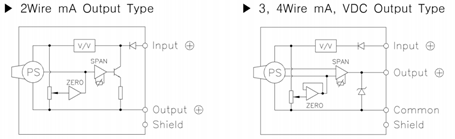

Output	0~5VDC，1~5VDC，0~10VDC，4~20mA (2，3Wire)
Electrical Connection	Din Connector
Physical
Proof Pressure	150% FS Max.
Burst Pressure	200% FS Min.
Vibration	49.1m/s²{5G}，10~500Hz
Shock	490m/s²{50G}

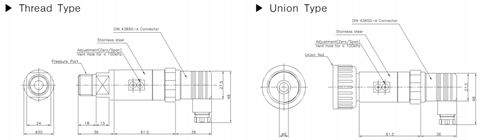

Pressure Port	R(PT)1/2"，G(PF)1/2"，Union
Media - Wetted Materials	PP or PVC，Ceramic(AI₂O₃96%)，VITON
Weight	Approx.200g（Sensor Only）
