Pressure Sensor
Series QIQ

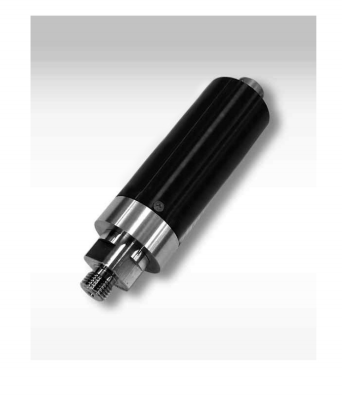

Pressure Transducer
for Precision Measurement
The QlQ digital pressure transducer is a high accuracy and performance for precision pressure measurement component that uses either RS-232 to communicate with host computer and analog output. The QIQ have a excellent small temperature error below 0.025% in the range of -10~50℃. The communication S/W is included in delivery.
Feature
- VDC, mA Analog output
-RS232 Digital output
-Measuring range 0~150MPa
-0.035%FS accuracy
-Gauge and absolute measurement
-Stainless steel media-wetted materials
Applications
-Measurement and test benches
- Calibration technology
-Laboratories
-Plant construction and machine building
SPECIFICATIONS
Range | |
-100kPa~0~100kPa 150MPa（Gauge） 0~100kPa 3.5MPa（Absolute） | |
Performance | |
Accuracy | ±0.035% FS(RSS) |
Thermal Effect on Zero | ±0.025% FS/℃ |
Thermal Effect on Span | ±0.025% FS/℃ |
Long-term Stability | ±0.05%FS/year |
Compensated Temperature Range | -10~50℃ |
Operating Temperature Range | -20~80℃ |
Electrical | |
Excitation | 11~32V DC |
Analog Output | 0~5VDC，1~5VDC，0~10VDC，4~20mA (3Wire) |
Digital Output | RS232(19200，8，n，1) |
Electrical Connection | TAJIMI Connector |
Physical | |
Proof Pressure | ≤100MPa：150% FS Max. / 100MPa：110% FS Max. |
Burst Pressure | ≤100MPa：200% FS Min. / 100MPa：110% FS Min. |
Vibration | 49.1m/s2{5G}，10~500Hz |
Shock | 490m/s2{50G} |
Pressure Port | R(PT)1/8",G(PF)1/8",R(PT)1/4",G(PF)1/4",R(PT)3/8",G(PF)3/8 |
Media - Wetted Materials | Stainless Steel 316L,Viton(>35MPa:Stainless Steel 303, Titanium 87% Alloy ) |
Weight | Connector type :Approx. 270g(Sensor Only) |
Dimension
Pin No. | Wire Color | Connections |
A | Green | Analog Input ㊉ |
B | White | GND |
C | Red | Excitation ㊉ |
D | Blue | RXD |
E | Yellow | TXD |
F | Black | GND |
G | Shield | FG |

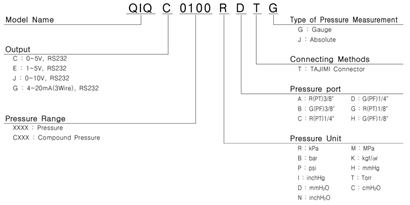

Ordering Information
* Specifications are subiect to change without notice
WZO CONTROLS LTD
