Series QTC

Voltage Output Pressure Transducer

QTC designed for all industry which is compact pressure transducer.Precise measurement is available with a semiconductor pressure cell.Inner amplification circuit applies to various control equipment.

Feature

-1~5VDC output

-Measuring range 0~3.5MPa

-0.5%FS accuracy

-Gauge and absolute measurement

-Piezoresistive silicon cell

-Stainless steel，Brass media-wetted materials

Applications

-Process control

-Hydraulics & Pneumatic

-Compressor Control

-Chillers

-Refrigeration Equipment

SPECIFICATIONS

Range
	0~20,30,50,100,200,300,500,700kPa / 2,3.5MPa（Gauge） 0~100,200,300,500,700kPa / 2,3.5MPa（Absolute）
Performance
Accuracy	±0.5%FS（RSS）
Thermal Effect on Zero	±0.5%FS/℃
Thermal Effect on Span	±0.5%FS/℃
Compensated Temperature Range	-10~70℃
Operating Temperature Range	-20~80℃

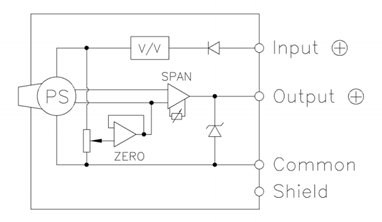

Electrical
Excitation	11~28VDC
Output	1~5VDC
Electrical Connection	Cable
Physical
Proof Pressure	300%FS Max.
Burst Pressure	400%FS Min.
Vibration	49.1m/s²{5G}，10~500Hz
Shock	490m/s²{50G}
Pressure Port	R(PT)1/4”（Stock），G(PF)1/4”
Media - Wetted Materials	Brass（Ni Plated）,Stainless Steel 316L，VITON
Weight	Approx.100g
