Pressure Sensor

QTP

Fast response 1ms
Measuring range 0~50MPa
One or two pressure setting points
PDF：QTP
INQUIRY

Series QTP

General Purpose Pressure Switches

QTP sensing element has excellent temperature properties by adopting a self temperature compensation foil strain gauge.A diaphragm and a pressure port are composed as one body for the prevention of leakage.It is also durable to an instant over pressure.It can control the system without any controller due to the output of a 1 or 2 channel NPN open collector switch.

Feature

-Electrical pressure switch with no mechanical moving part

-Fast response 1ms

-Measuring range 0~50MPa

-One or two pressure setting points

-Self temperature compensation foil strain gauge

-Stainless steel media - wetted materials

Applications

-Process control

-Hydraulics & Pneumatic

-Compressor Control

-Chillers

-Refrigeration Equipment

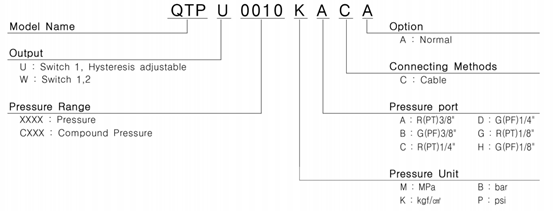

SPECIFICATIONS

	QTPU		QTPW
Range
		0~1，2,3,5,10,20,30,35,50MPa（Gauge） -0.1~0,1,2,3,5,10，20,30,35,50MPa（Gauge）
Performance
Accuracy		±1%FS
Hysteresis		Hysteresis adjustable（2~10%）		3%FS
Thermal Effect on Zero		±0.1%FS/℃
Thermal Effect on Span		±0.1%FS/℃
Compensated Temperature Range		-10~70℃
Operating Temperature Range		-20~80℃
Electrical
Excitation		11~28VDC
Output		1 Channel NPN Open Collector		2 Channel NPN Open Collector
Switch Load Current		28V 80mA Max.
Electrical Connection		Cable
Physical
Proof Pressure		150%FS Max.
Burst Pressure		200%FS Min.
Vibration		49.1m/s²{5G}，10~500Hz
Shock		490m/s²{50G}
Pressure Port		R(PT)1/8”,G(PF)1/8”,R(PT)1/4”(Stock),G(PF)1/4”,R(PT)3/8”(Stock),G(PF)3/8”
Media - Wetted Materials		Stainless Steel 304，630
Weight		Approx.150g（include cable 50cm）
