Series QUC

General Purpose Pressure Transducer

QUC model has applied Silicon Piezoresistive cell, which attached High Temperature Glass on Titanium. Its low price makes it suitable for industrial uses. With its various outputs, it may be interfaced with various controllers.

Feature

-CE Certified

-Built-in amplifier Circuit(VDC, mA)

- Measuring range-100kPa～10MPa

-0.5%FS accuracy

-Piezoresistive silicon cell

-Zero, Span Adjustable

-Stainless steel, Titanium, EPDM media-wetted materials

Applications

-Process control

-Hydraulics & Pneumatic

-Compressor Control

-Chillers

-Refrigeration Equipment

SPECIFICATIONS

Range
	0~100，200，600kPa / 1，2，3，5，10MPa（Gauge） -100~0，100，200，600kPa / 1，2，3，5，10MPa（Gauge）
Performance
Accuracy	±0.5%FS（RSS）
Thermal Effect on Zero	±0.5%FS/℃
Thermal Effect on Span	±0.5%FS/℃
Compensated Temperature Range	-10~70℃
Operating Temperature Range	-20~80℃
Electrical
Excitation	11~28VDC（PTBA 12VDC Max.）

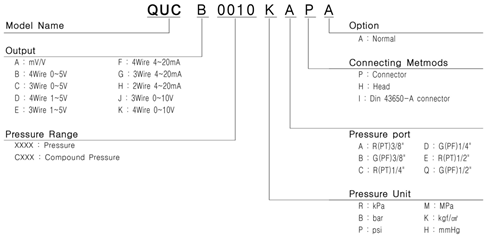

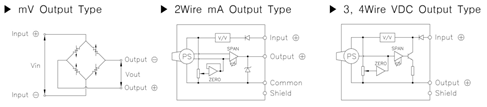

Output	10~20mV/V（600kPa~10MPa Only） 0~5VDC，1~5VDC，0~10VDC（3,4Wire），4~20mA/A（2,3Wire）
Electrical Connection	Connector，Head，Din Connector
Physical
Proof Pressure	150%FS Max.
Burst Pressure	200%FS Min.
Vibration	49.1m/s²{5G}，10~500Hz
Shock	490m/s²{50G}
Pressure Port	R(PT)1/8”,G(PF)1/8”,R(PT)1/4”,G(PF)1/4”,R(PT)3/8”,G(PF)3/8”
Media - Wetted Materials	Stainless Steel 304，Titanium 87%，O-ring：EPDM(Optional VITON)
Weight	Connector type：Approx.140g（Sensor Only）

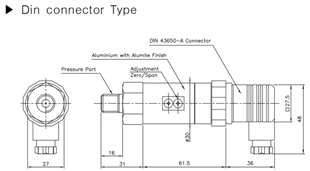

Dimension

Pin No.	Connections
1	Input ⊕
2	Output ⊝
3	Input ⊝
4	Output ⊕
5	Earth

Pin No.	Wire Color	Connections
Pin No.	Wire Color	4Wire	3Wire	2Wire
1	Red	Input ⊕	Input ⊕	Input ⊕
2	White	Output ⊝	Common ⊝	X
3	Black	Input ⊝	X	Output ⊕
4	Green	Output ⊕	Output ⊕	X
5	Shield	Earth	Earth	Earth
