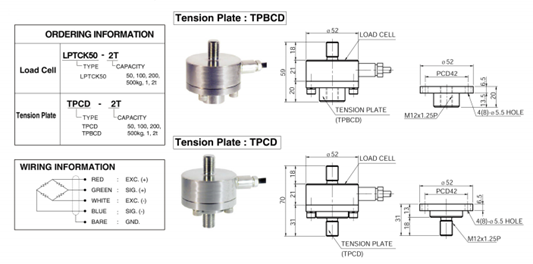

Low Profile Loadcell
The model LPTCK50 miniature type is designed for low profile tension and compression service.lts compact size makes the cell ideal for a wide range of applications including testing & weighing systems.
- 17-4PH Stainless steel construction
- Fully welded seal with stainless steel cover for hostile environment applications.
- Compact size with low profile.
SPECIFICATIONS
TYPE | LPTCK50 |
Rated capacity (R.C.) | 50，100，200，500，1000，2000kg |
Rated output(R.O.) | 2mV/V ± 0.25% |
Non-linearity | ≤0.1% R.O. |
Hysteresis | ≤0.1% R.O. |
Non-repeatability | ≤0.1% R.O. |
Creep error | ≤0.03% in 20min |
Zero balance | ≤1% R.O. |
Compensated temperature range | -10 ~ 70℃ |
Operating temperature range | -20 ~ 80℃ |
Temp. effect on rated output | ≤0.05% LOAD/10℃ |
Temp.effect on zero balance | ≤0.05% R.O./10℃ |
Terminal input resistance | 700 Ohms ± 10 Ohms |
Terminal output resistance | 700 Ohms ± 10 Ohms |
Insulation resistance (Min.) | 2000 MOhms at 50V DC |
Excitation voltage | 10V(Recommended), 15V(Max) |
Electrical connection | Ø5mmx3m(22AWG x 4Core Shielded) |
Protection class | meets IP 67 |
Safe overload | 150% R.C |
Ultimate overload | 300% R.C |
* Specifications are subject to change without notice
