Low Profile Loadcell
Series LPCT20
Compression
Low Profile Load Cell(50kg-20t)
The model LPCT20 miniature type is designed for low profile compression service.
Its compact size makes the cell ideal for a wide range of applications including testing & weighing systems.
-17-4PH Stainless steel construction.
-Fully welded seal with stainless steel cover for hostile environment applications.
-Compact size with low profile.
SPECIFICATIONS
TYPE | LPCT20 | |
Rated capacity (R.C.) | 50, 100, 200, 500kg | |
1, 2, 3, 5, 10, 20t | ||
Rated output(R.O.) | 2.0mV ± 0.25% | |
Non-linearity | ≤0.1% R.O. | |
Hysteresis | ≤0.05% R.O. | |
Non-repeatability | ≤0.05% R.O. | |
Creep error | ≤0.03% in 20min | |
Zero balance | ≤1% R.O. | |
Compensated temperature range | -10 ~ 70℃ | |
Operating temperature range | -20 ~ 80℃ | |
Temp. effect on rated output | ≤0.05% LOAD/10℃ | |
Temp.effect on zero balance | ≤0.05% R.O./10℃ | |
Terminal input resistance | 700 Ohms ± 10 Ohms | |
Terminal output resistance | 700 Ohms ± 10 Ohms | |
Insulation resistance (Min.) | 2000 MOhms at 50V DC | |
Excitation voltage | 3~12V（Recommended）,15V（Max.） | |
Electrical connection | 50kg~2t | Ø5mmx3m(22AWG x 4Core Shielded) |
3t~20t | Ø7mmx6m(22AWG x 4Core Shielded) | |
Protection class | meets IP 68 | |
Safe overload | 150% R.C | |
Ultimate overload | 300% R.C | |

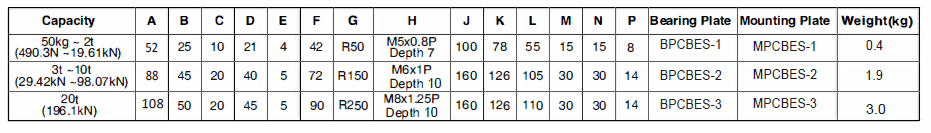

Dimension-mm
* Specifications are subject to change without notice
WZO CONTROLS LTD
