S Type Loadcell
MSTCG10
Miniature S-Beam Load Cell
FEATURES
The MSTCG10 is a miniature tension/compression load cell. This load cell offers a unique combination of compact size, with a high over load capacity rating of 1000% of full scale. The MSTCG10 has two threaded #4-40 mounting holes on either end for easy installation.
·TENSION/COMPRESSION
·.75 INCH OVERALL HEIGHT
·ALUMINUM BODY
·BUILT IN OVERLOAD PROTECTION
SPECIFICATIONS
LOAD RANGES: | 10 grams to 100 lbs. |
LINEARITY: | ±0.1%F.S. |
HYSTERESIS: | ±0.1%F.S. |
REPEATABILITY: | ±0.5%F.S. |
MATERIAL:
| 100 grams to 10 lbs. - Aluminum |
25lbs. and up - Stainless Steel | |
TEMPERATURE RANGE: | 60°to 160°F |
OUTPUT: | .5 mv/v - 10 grams |
1mv/v - 20 grams | |
2mv/v - 50 grams to 100 lbs. | |
BRIDGE RESISTANCE: | 1000 ohm -10 to 250 grams |
350 ohm - 1 to l00 Ibs. | |
EXCITATION: | 5Vdc |
SAFE OVERLOAD: | 1000% of rated load |
200%-50 to 100 lbs. | |
CABLE: | 5 Ft. |
WEIGHT: | 9 grams (100 grams to 10 lbs.) |
26 grams (25 to 100 lbs.) |
AVAILABLE RANGES |
10g,20g,50g,100g,250g |
1;2;5;10;25;50;100lbs |

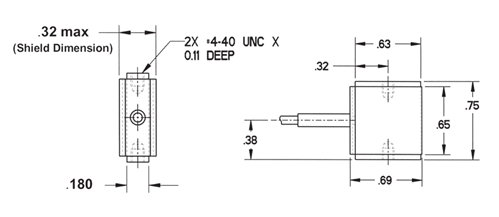

DIMENSION
* Specifications are subject to change without notice
WZO CONTROLS LTD
