S Type Loadcell
S- Beam Load Cell (20kg ~ 5t)
FEATURES
The SBCTK500 S-beam load cell is designed for industrial scale conversion and a variety of process applications.
-Alloy tool steel construction for high accuracy.
-Electroless nickel plated for corrosion resistance.
-Fully sealded to IP67
SPECIFICATIONS
TYPE | SBCTK500 |
Rated capacity (R.C.) | 20，50，100，200，500kg |
1，2，3，5 t | |
Rated output(R.O.) | 3mV/V±5% |
Non-linearity | ≤0.03% R.O. |
Hysteresis | ≤0.03% R.O. |
Non-repeatability | ≤0.02% R.O. |
Creep error | ≤0.03% in 20 min. |
Zero balance | ≤1% R.O. |
Compensated temperature range | -10~70℃ |
Operating temperature range | -20~80℃ |
Temp, effect on rated output | ≤0.03% LOAD/10℃ |
Temp, effect on zero balance | ≤0.03% R.O./10℃ |
Terminal input resistance | 350 Ohms ±3.5 Ohms |
Terminal output resistance | 350 Ohms ±5 Ohms |
Insulation resistance (Min.) | 2000 MOhms at 50V DC |
Excitation voltage | 10V(Recommendea),15V(Max.) |
Electrial connection | Ø5mmx3m(22AWGx4Core Shielded) |
Prelection class | Meets IP 67 |
Safe overload | 150% R.C |
Ultimate overload | 300% R.C |

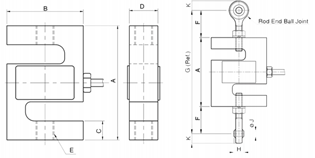

DIMENSION-MM
Rated Capacity | A | B | C | D | E | F | G | H | J | K | Rod End Ball Joints | Weight (kg) |
20~100kg (196.1~980.7N) | 63.5 | 50.8 | 10.4 | 12.7 | M6x1P | 25 | 113.5 | 9 | 6 | 9 | SRDB 1 | 0.40 |
500,500kg (1.961, 4.903KN) | 76.2 | 50.8 | 12.7 | 19.0 | M12x1.75P | 41 | 158.2 | 16 | 12 | 16 | SRDB 2 | 0.55 |
1t (9.807KN) | 76.2 | 50.8 | 16.0 | 25.4 | M12x1.75P | 41 | 158.2 | 16 | 12 | 16 | SRDB 2 | 0.73 |
2t (19.61KN) | 108.0 | 76.2 | 20.0 | 32.0 | M20x1.5P | 55 | 218 | 25 | 20 | 23 | SRDB 3 | 1.70 |
3, 5t (29.42,49.03KN) | 120.7 | 88.9 | 22.1 | 32.0 | M24x2P | 55 | 230.7 | 28 | 22 | 32 | SRDB 4 | 2.10 |
* Specifications are subject to change without notice
