Bending Beam Loadcell
The BBLC series single ended bending beam load cell is designed for tension or compression loading applications including bench scale and conveyor weighing.
-Fully welded seal with stainless steel bellows for hostile environment applications.
-17-4PH stainless steel construction.
SPECIFICATIONS
TYPE | BBLC | BBLC2 |
Rated capacity (R.C.) | 10, 20, 50, 100kg | 200, 300, 500kg |
Rated output(R.O.) | 2.0mV/V ±0.2% | |
Non-linearity | ≤0.03% R.O. | |
Hysteresis | ≤0.02% R.O. | |
Non-repeatability | ≤0.02% R.O. | |
Creep error | ≤0.03% in 20min | |
Zero balance | ≤1% R.O. | |
Compensated temperature range | -10 ~ 70℃ | |
Operating temperature range | -20 ~ 80℃ | |
Temp. effect on rated output | ≤0.02% LOAD/10℃ | |
Temp.effect on zero balance | ≤0.02% R.O./10℃ | |
Terminal input resistance | 400 Ohms ± 20 Ohms | |
Terminal output resistance | 350 Ohms ± 5 Ohms | |
Insulation resistance (Min.) | 2000 MOhms at 50V DC | |
Excitation voltage | 10V（Recommended）,15V（Max） | |
Electrical connection | Ø5mmx3m（22AWG x 4Core Shielded） | |
Protection class | meets IP 68 | |
Safe overload | 150% R.C | |
Ultimate overload | 300% R.C | |

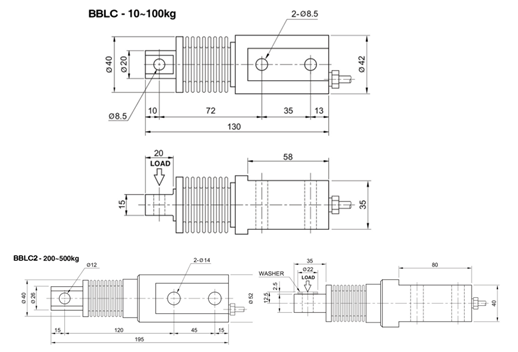

DIMENSIONS-mm
Rated Capacity | A | B | C | D | E | F | G | H | I | J | K | L | P | Q | S | Weight （kg） |
10~100kg (98.1N-980.7N) | 130 | 10 | 72 | 35 | 13 | 39 | 20 | 10.5 | 42 | 8.5 | 8.5 | 20 | 58 | 15 | 35 | 0.9 |
200~500kg (1.96KN-4.90KN) | 200 | 20 | 120 | 45 | 15 | 50 | 29 | 14 | 52 | 12 | 14 | 40 | 80 | 25 | 40 | 1.9 |
* Specifications are subject to change without notice
