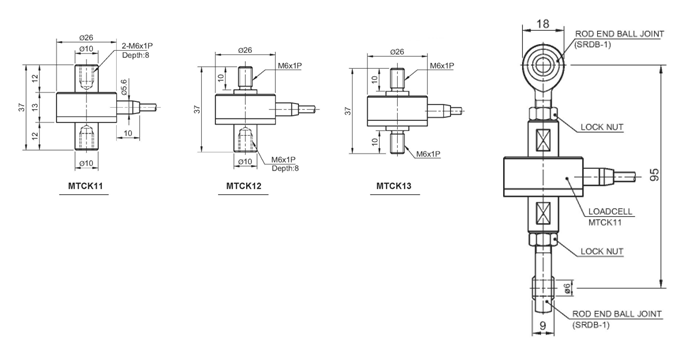

MTCK11-12-13

Rated   capacity (R.C.)

10，30，50，100，200kg

Rated   output(R.O.)

1.0mV/V   ±1%

Non-linearity

≤0.5% R.O.

Hysteresis

≤0.5% R.O.

Non-repeatability

≤0.2% R.O.

Creep   error

≤0.1% in 20min

Zero   balance

≤1% R.O.

Compensated   temperature range

-10   ~ 70℃

Operating   temperature range

-20   ~ 80℃

Temp.   effect on rated output

≤0.1% LOAD/10℃

Temp.effect   on zero balance

≤0.1% R.O./10℃

Terminal   input resistance

410   Ohms ± 30 Ohms

Terminal   output resistance

350   Ohms ±   5 Ohms

Insulation   resistance (Min.)

2000   MOhms at 50V DC

Excitation   voltage

5V（Recommended）,8V（Max.）

Electrical   connection

Ø3mmx1.5m(28AWG x 4Core Shielded)

Protection   class

meets IP   67

Safe   overload

150%   R.C

Ultimate   overload

300%   R.C

Material

17-4PH   Stainless steel
