Pressure Sensor
Series N6200
Heavy Industrial - High EMI Rated
The N6200 series from SENSYS sets the price/performance standard for transducers used in demanding environments. The N6200 exceeds the latest heavy industrial CE requirements including surge protection, and is over voltage protected to 16VDC in both positive and reverse polarity. The pressure port is machined from a solid piece of 17-4PH stainless steel(316L optional). There are no O-rings, organics or welds exposed to the pressure media. This allows for a leak proof, all-metal sealed pressure system which withstands more than 10 million pressure cycles without failure.
Feature
- Heavy Industrial CE Approval
-100V/m EMI Protection
- Reverse Polarity Protection
- Extended temperature range
-0.5%FS accuracy
-Compact Outline
-40 to 125℃
Applications
- Gas leak detection
-Gas monitoring
-Gas & Air process control
-Vacuum system
SPECIFICATIONS
Range | |
3.5，7,10，20，35，70，200，350，700，bar | |
Performance | |
Accuracy | ±0.5% FS(RSS) |
Thermal Effect on Zero | ±0.05% FS/℃ |
Thermal Effect on Span | ±0.05% FS/℃ |
Compenated Temperature Range | -20~85℃ |
Operating Temperature Range | -40~125℃ / -40~85℃（4~20mA） |
Electrical | |
Exitation | 4.75~5.25VDC 8~30VDC 15~30VDC 9~30VDC |
Output | 0.5~4.5VDC 1~5VDC 0~5VDC 0~10VDC 4~20mA(2Wire) |
Insulation Resistance | 1MΩ @25VDC |
Electrical Connection | Cable, Packard Connector, Mini Din Connector |
Physical | |
Proof Pressure | 200% FS Max. |
Burst Pressure | 500% FS Min. |
Vibration | 20G at 20 to 200Hz |
Shock | 50G / 11ms |
Media - Wetted Materials | Stainless Steel 630 |
Weight | Mini Din Connector type: Approx. 85g (Sensor Only) |
CE compliant per the following specification
EN55022Emission Class A & B
IEC61000-4-2 Electrostatic Discharge Immunity(6kV contact/8kV air)
IEC61000-4-3 EM Field Immunity(30V/m)
IEC61000-4-4 Electrical Fast Transient Immunity(1Kv)
IEC61000-4-5 Surge(1kV)
IEC61000-4-6 Conducted Immunity(10V)
IEC61000-4-9 Pulsed Magnetic Field Immunity(100A/m)

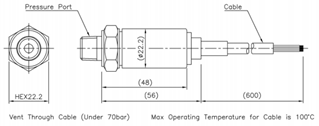

Dimension
Ø Cable Type
Wire Color | Connections | |
V Output | mV Output | |
Red | Input ㊉ | Input ㊉ |
Black | Common ⊖ | Output ㊉ |
Green | Output ㊉ | X |
Ø Packard Connector Type
Wire Color | Connections | |
V Output | mV Output | |
A | Input ㊉ | Input ㊉ |
B | Common ⊖ | Output ㊉ |
C | Output ㊉ | X |
Ø Mini DIN Connector Type
Wire Color | Connections | |
V Output | mV Output | |
1 | Input ㊉ | Input ㊉ |
2 | Output ㊉ | Output ㊉ |
3 | Common ⊖ | X |
⊜ | Earth | X |
Ordering Information
* Specifications are subiect to change without notice
