Pressure Sensor
Series QCN
Wall Mounting Type Pressure Transmitter
QCN model is high precise and its media-wetted materials are composed of stainless steel 316, having excellent corrosion-resistant properties. It is applied to precise measurement and builds an amplifier therein to interface with various kinds of controllers. Wall Mounting type which is easy to attach on wall.
Feature
-mA output
-Measuring range 0~35MPa
-0.15%FS accuracy
-Gauge and absolute measurement
-Piezoresistive silicon cell
-Stainless steel(316L)media-wetted materials
Applications
-Ship & Marine System
-Process control
-Hydraulics & Pneumatic
-Pump Speed Control
-Compressor Control
SPECIFICATIONS
Series QCN
Wall Mounting Type Pressure Transmitter
QCN model is high precise and its media-wetted materials are composed of stainless steel 316, having excellent corrosion-resistant properties. It is applied to precise measurement and builds an amplifier therein to interface with various kinds of controllers. Wall Mounting type which is easy to attach on wall.
Feature
-mA output
-Measuring range 0~35MPa
-0.15%FS accuracy
-Gauge and absolute measurement
-Piezoresistive silicon cell
-Stainless steel(316L)media-wetted materials
Applications
-Ship & Marine System
-Process control
-Hydraulics & Pneumatic
-Pump Speed Control
-Compressor Control
SPECIFICATIONS
Range | |
0~5,10,20,30,50,100,200,300,500,700kPa/2,3.5,7,20,35MPa（Gauge） -100~0，30，50，100，200，300，500，700kPa（Gauge） 0~100，200，300，500，700kPa/2，3.5，7，20，35MPa（Absolute） | |
Performance | |
Accuracy | ±0.15% FS(RSS) |
Thermal Effect on Zero | ±0.03% FS/℃ |
Thermal Effect on Span | ±0.03% FS/℃ |
Compensated Temperature Range | -10~70℃ |
Operating Temperature Range | -20~80℃ |
Electrical | |
Excitation | 11~28V DC |
Output | 4~20mA (2Wire) |
Electrical Connection | Cable Gland |
Physical | |
Proof Pressure | 300% FS Max. |
Burst Pressure | 500% FS Min. |
Vibration | 49.1m/s2{5G}，10~500Hz |
Shock | 490m/s2{50G} |
Pressure Port | R(PT)1/4",G(PF)1/4",R(PT)3/8",G(PF)3/8",R(PT)1/2",G(PF)1/2" |
Media - Wetted Materials | Stainless Steel 316L, VITON |
Weight | Approx.700g |

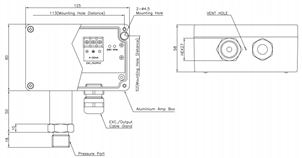

Dimension
NO | Connections |
2Wire | |
+ | Input ㊉ |
⊜ | Earth |
- | Output ㊉ |
Internal Circuit Diagram
Ordering Information
* Specifications are subiect to change without notice
