Pressure Sensor

QND

Built-in amplifier Circuit (VDC,mA)
Measuring range 0~50MPa
0.8%FS accuracy
IP55 protection（Cable type）
PDF：QND
INQUIRY

Series QND

Car,Building Purpose Pressure Transducer

QND sensing element has excellent temperature properties by adopting a self temperature compensation foil strain gauge.The size is small and price is low for vehicles and heavy machinery use.In addition, a diaphragm and a pressure port are welded together for the prevention of leakage.It is also durable to an instant over pressure and builds an inner amplifier to interface with various kinds of controllers.

Feature

-Built-in amplifier Circuit (VDC,mA)

-Measuring range 0~50MPa

-0.8%FS accuracy

-IP55 protection（Cable type）

-Self temperature compensation foil strain gauge

-Stainless steel media-wetted materials

Applications

-Off road equipment

-Hydraulics & Pneumatic

-Compressor control

-Industrial engines

-Pump pressure control

SPECIFICATIONS

Range
	0~1，2，3，5，10，20，30，35，50MPa（Gauge） -0.1~1，2，3，5，10，20，30，35，50MPa（Gauge）
Performance
Accuracy	±0.8%FS（RSS）
Thermal Effect on Zero	±0.08%FS/℃
Thermal Effect on Span	±0.08%FS/℃
Compensated Temperature Range	-20~80℃
Operating Temperature Range	-30~100℃（Optional -30~120℃）
Electrical
Excitation	11~28VDC
Output	1~5VDC，4~20mA（2Wire）
Electrical Connection	Connector,Cable,AMP Connector（1~5VDC 3Wire Only）,Head,Din Connector
Physical
Proof Pressure	150%FS Max.
Burst Pressure	200%FS Min.
Vibration	49.1m/s²{5G}，10~500Hz
Shock	490m/s²{50G}
Pressure Port	R(PT)1/8”，G(PT)1/8”，R(PT)1/4”，G(PF)1/4”，R(PT)3/8”，G(PF)3/8”
Media - Wetted Materials	Stainless Steel 304, 630
Weight	Approx.130g（AMP Connector Type）

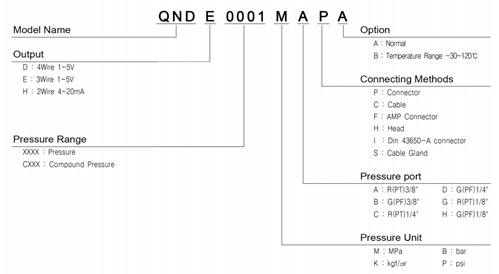

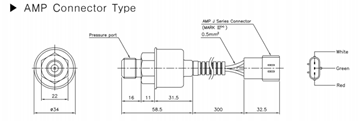

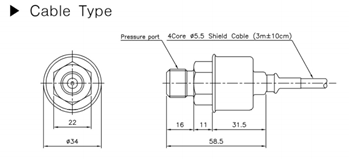

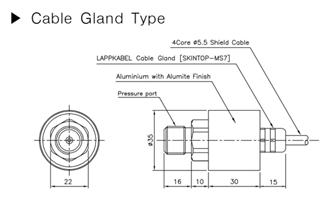

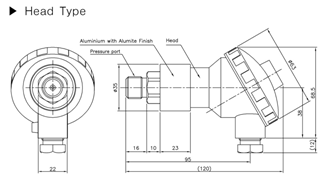

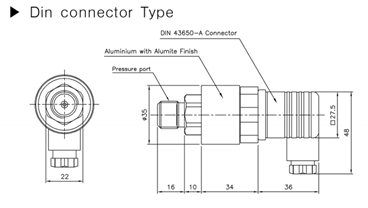

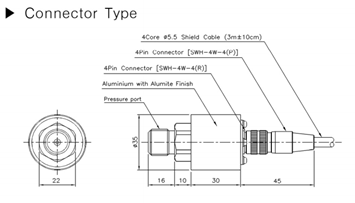

Dimension

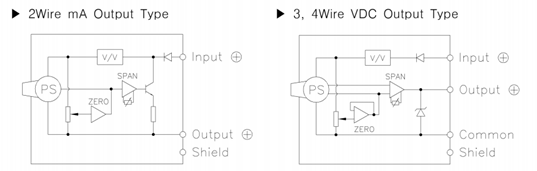

Wire Color
Wire Color	4Wire
Red	Input ⊕	Input ⊕	Input ⊕
White	Output ⊝	Common ⊝	X
Black	Input ⊝	X	Output ⊕
Green	Output ⊕	Output ⊕	X
Shield	Earth	Earth	Earth

Wire Color	Connections
Wire Color	4Wire	3Wire	2Wire
Red	Input ⊕	Input ⊕	Input ⊕
White	Output ⊖	Common ⊝	X
Black	Input ⊖	X	Output ⊕
Green	Output ⊕	Outpur ⊕	X
Shield	Earth	Earth	Earth

Wire Color	Connections
Wire Color	4Wire	3Wire	2Wire
Red	Input ⊕	Input ⊕	Input ⊕
White	Output ⊝	Common ⊝	X
Black	Input ⊕	X	Output ⊕
Green	Output ⊕	Output ⊕	X
Shield	Earth	Earth	Earth

Pin No.	Wire Color	Connections
Pin No.	Wire Color	4Wire	3Wire	2Wire
1	Red	Input ⊕	Input ⊕	Input ⊕
2	White	Output ⊝	Common ⊝	X
3	Black	Input ⊕	X	Output ⊕
4	Green	Output ⊕	Output ⊕	X
5	Shield	Earth	Earth	Earth
