Low Profile Loadcell
Low-profile design of the HTJ pull dual pressure sensors are specifially designed for experimental machine to meet the different requirements of precision test and also be used to measure various forces.
Features
-Capacities: 0.5,1,2,5,10,20,25 and 30 tons
-Compact size with low profile
-Low deflection for high output
-Electroless nickel-plated alloy tool steel construction
-Off center load compensated
SPECIFICATIONS
PARAMETER | VALUE | UNIT |
Standard capacities | 500kg, 1t, 2t, 5t, 10t, 20t，25t，30t | Vdc or Vac rms |
Excitation recommended | 10VAC/DC | Vdc or Vac rms |
Excitation maximum | 15VAC/DC | mV/V |
Rated output-R.O. | 3mV/V±0.25% | mV/V |
Non-linearity | 0.05% | ±% of rated output |
Hysteresis | 0.05% | ±% of rated output |
Non-repeatability | 0.02% | ±% of rated output |
Creep error（20 minutes） | 0.03% | ±% of rated output |
Zero return | 0.03% | ±% of rated output |
Compensated temperature of Zero | 0.0015 | ±% of rated output/℃ |
Compensated temperature of Output | 0.0026 | ±% of applied loda/℃ |
Compensated temperature range | -10℃ to +40℃ | ℃ |
Operating temperature range | -20℃ to +60℃ | ℃ |
Zero balance | ±1% | ±% of rated output |
input impedance | 385±5Ω | Ohms |
output impedance | 350±3Ω | Ohms |
Insulation resistance | >5000MΩ | Mega-Ohms |
Safe overload | 150% | % of R.C. |
Ultimate overload | 300% | % of R.C. |

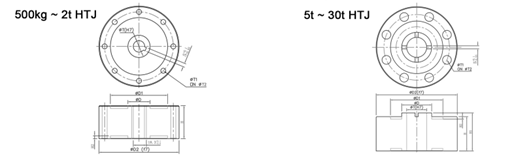

DIMENSIONS-mm
CAPACITY | D | D1 | D2 | H | H1 | H2 | T | T1 | T2 | |
500kg/1t/2t | mm | 31 | 80 | 112 | 46 | - | 4 | 16 | 7 | 96 |
(inch) | 1.22 | 3.15 | 4.41 | 1.81 | - | 0.16 | 0.63 | 0.28 | 3.78 | |
5t/10t | mm | 48 | 84 | 130 | 55 | 61 | 4 | 32 | 14 | 105 |
(inch) | 1.89 | 3.31 | 5.12 | 2.17 | 2.4 | 0.16 | 1.26 | 0.43 | 4.13 | |
20t/25t/30t | mm | 72 | 130 | 182 | 80 | 86 | 4 | 39 | 15 | 154 |
(inch) | 2.83 | 5.12 | 7.17 | 3.15 | 3.39 | 0.16 | 1.54 | 0.59 | 6.06 |
* Specifications are subject to change without notice
